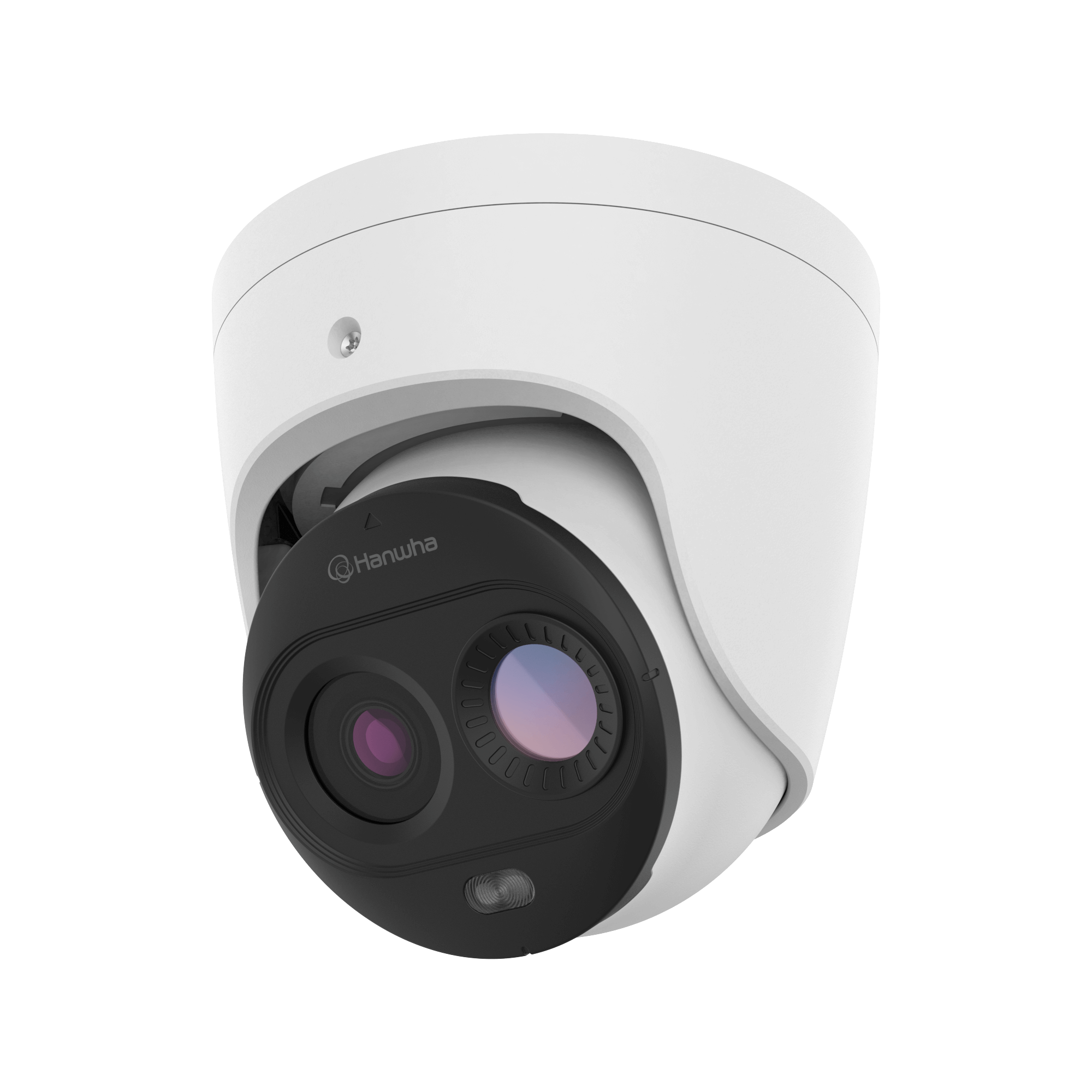

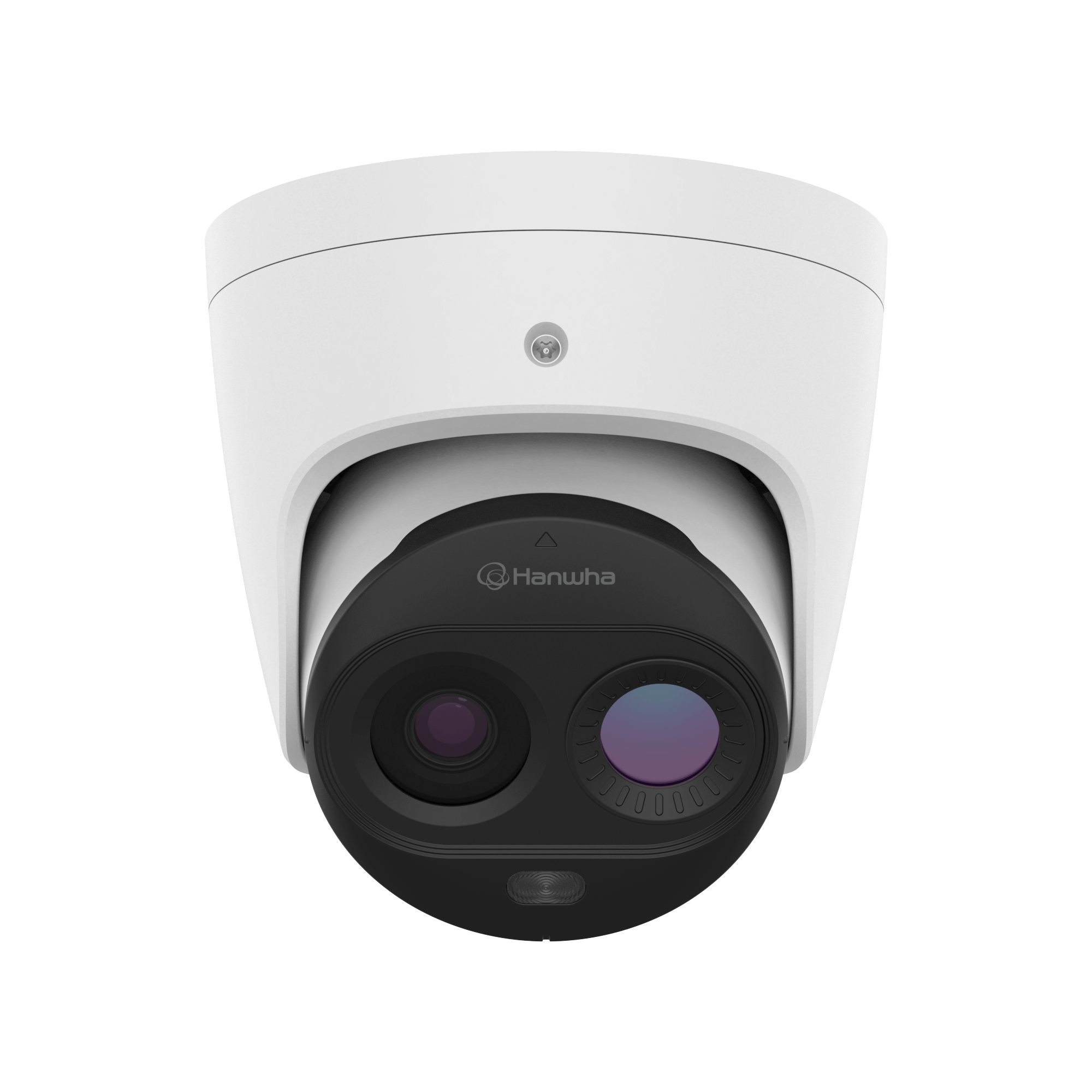

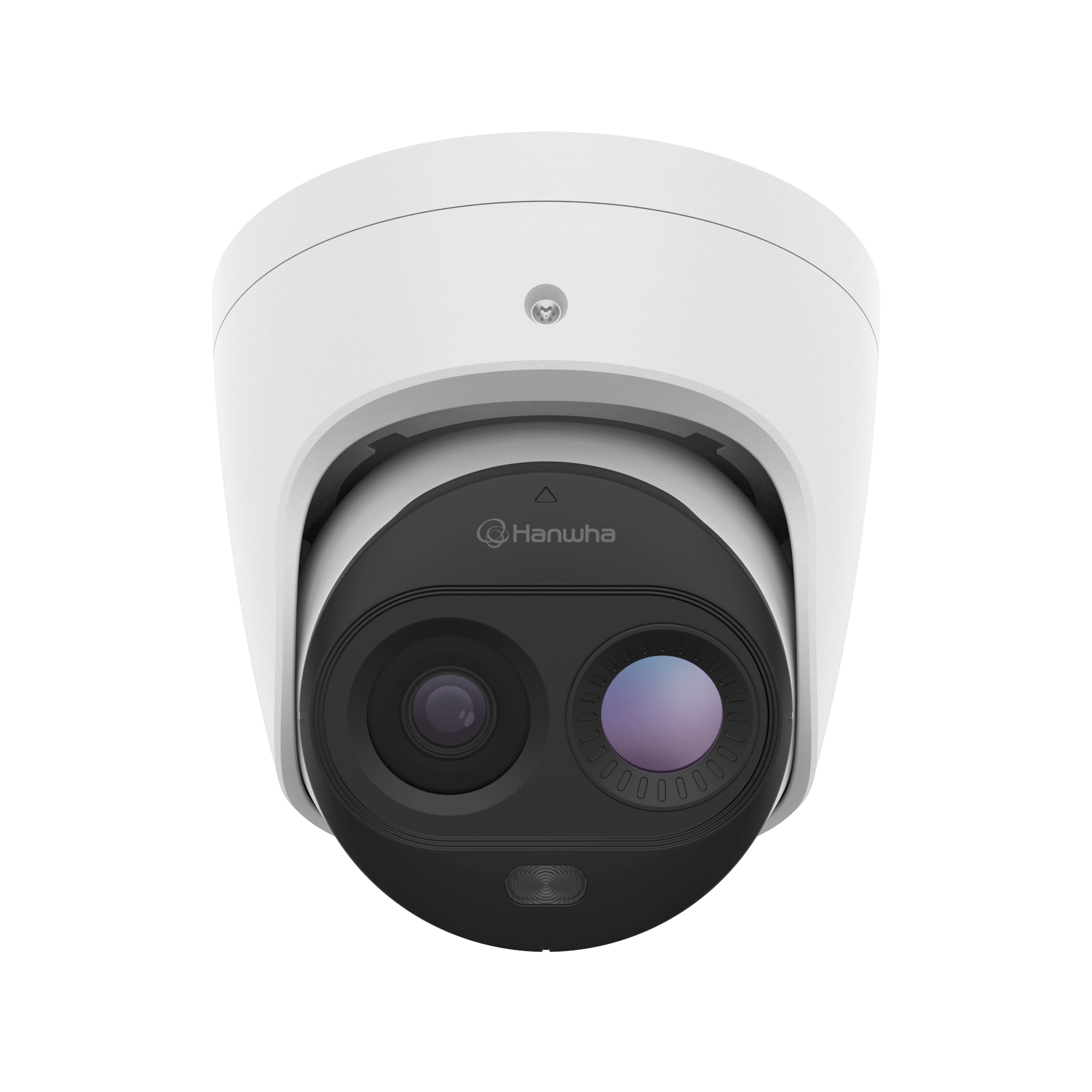

TNM-C2712TDR is a compact, bi-spectrum thermal camera designed for early fire detection. It features a QQVGA thermal sensor and 3MP visible sensor, supports AI-based analytics, and operates in wide temperature ranges from -10°C to 450°C. With IP66/IP67 and IK09 ratings, PoE support, and built-in security protocols, it’s ideal for critical surveillance and safety monitoring applications.
TNM-C2712TDR
• Bi-spectrum Multi-Channel: QQVGA Thermal & 3MP Visible Sensor
• Max. Framerate: Visiable 30fps, Thermal 8fps
• Angular Field of View : Thermal H: 95° / V: 69° / D: 119°
& Visible H: 100° / V: 73° / D: 129°
• Early fire detection (Analytics events based on AI engine)
• Temperature detect range (Narrow: -10°C~140°C Wide: -10°C~450°C)
,Temperature difference detection
• IP66/IP67, IK09 (except lenses in front)
• PoE: Max 10.8W, typical 6.2W
